What is Mechanical Drawing Generator for Patents?

Mechanical Drawing Generator for Patents is a PatentFig AI workflow for turning a mechanical drawing, technical drawing, product photo, CAD render, or inventor sketch into filing-ready black-and-white line art on a pure white background, with mechanical structure, views, and reference numerals placed outside the part and connected by squiggly lead lines, per USPTO §1.84 / CNIPA.

Does this replace legal review?

No. PatentFig AI accelerates drawing preparation and pre-filing checks, but attorney or agent review is still needed before submission.

How do mechanical and technical drawings become patent figures?

PatentFig AI routes a mechanical or technical drawing into the patent workflow and produces filing-ready patent line art — black-and-white structure, the right views, and reference numerals — instead of an engineering drawing.

Does every fastener need a reference numeral?

Only if the claim describes the fastener specifically. Otherwise, a group of identical fasteners can share one reference numeral. Detail views can break out individual fasteners when the claim depends on them.

Should I include dimensions on a mechanical patent figure?

Usually no. Dimensions are engineering data, not patent content. The exception is when the claim specifies a particular dimension or ratio — in that case, the figure can call out the value but should not include manufacturing tolerances.

When does a mechanical invention need a cross-section figure?

Whenever the claim depends on interior structure — chambers, seals, bearing seats, internal linkages. Pick the section plane that cuts through the claimed features, mark it on the exterior view (e.g., line A–A in FIG. 1), and hatch only the cut material.

Mechanical Drawing Generator for Patents

Create patent-ready figures for mechanical drawings, technical drawings, device structures, housings, cross-sections, and hardware assemblies.

Start creating Related workflows

Start from a mechanical drawing, technical drawing, product photo, CAD render, or inventor sketch.
Generate filing-ready black-and-white line art on a pure white background, with mechanical structure, views, and reference numerals placed outside the part and connected by squiggly lead lines, per USPTO §1.84 / CNIPA.
Refine labels, arrows, view layout, and figure structure through focused iterations.
Connect the result to Figure Checker, export tools, and the broader patent drawing workflow.

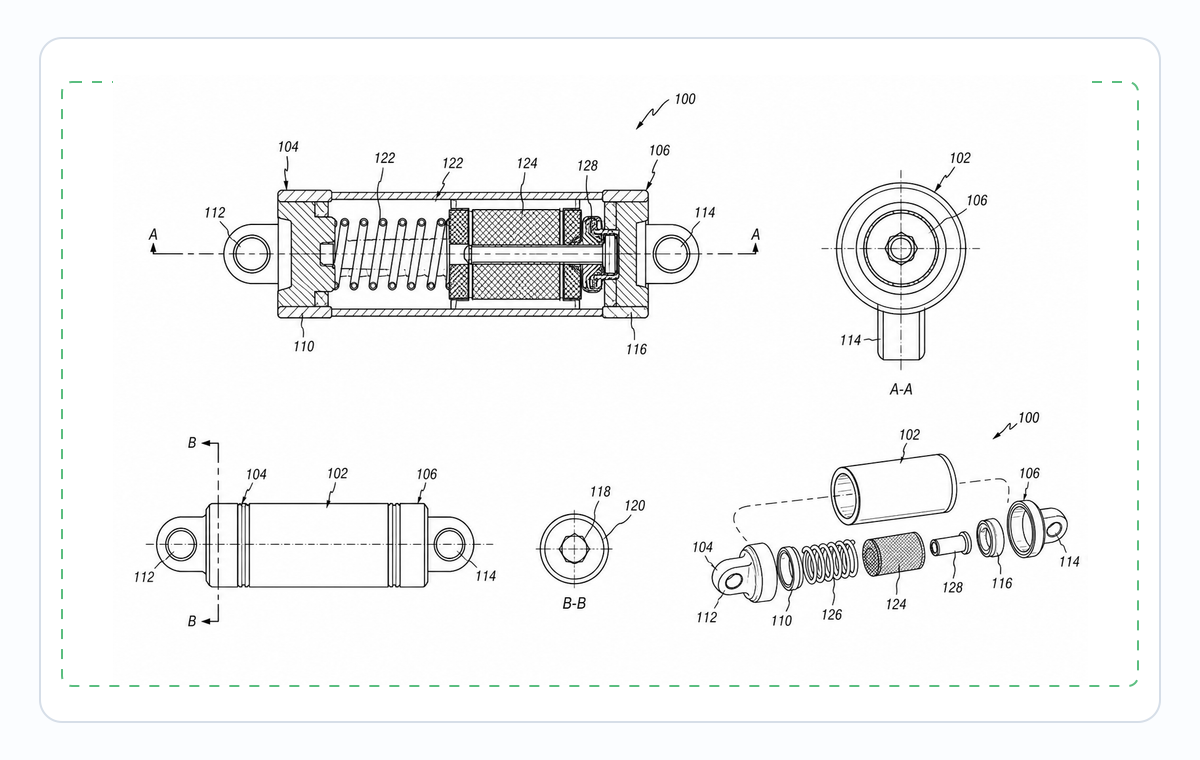

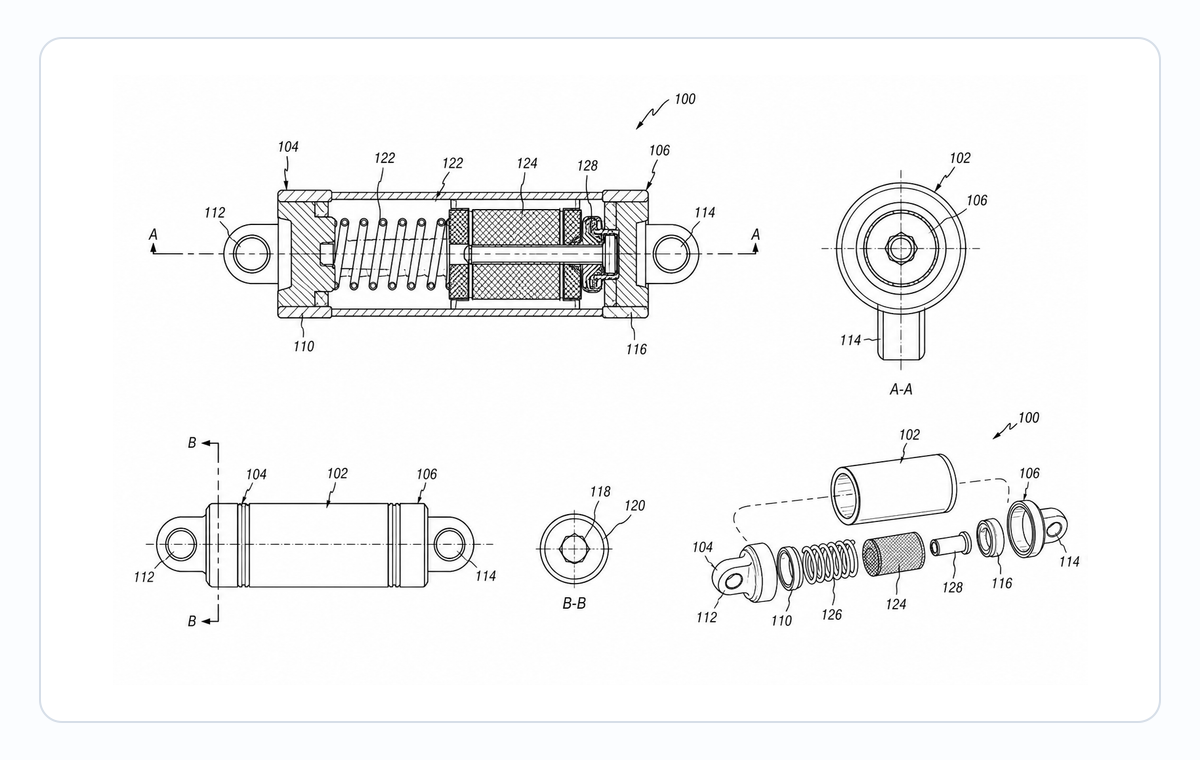

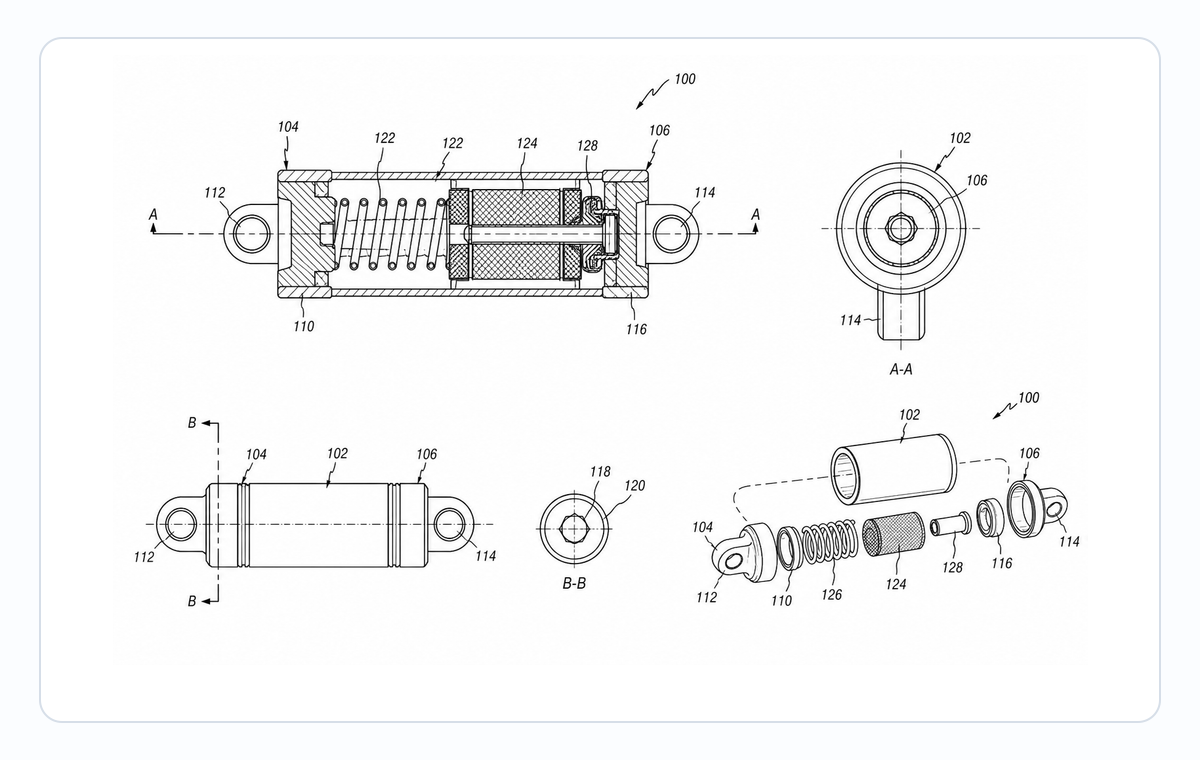

Mechanical Drawing Generator for Patents cover example — Example output: filing-ready black-and-white line art on a pure white background, with mechanical structure, views, and reference numerals placed outside the part and connected by squiggly lead lines, per USPTO §1.84 / CNIPA.

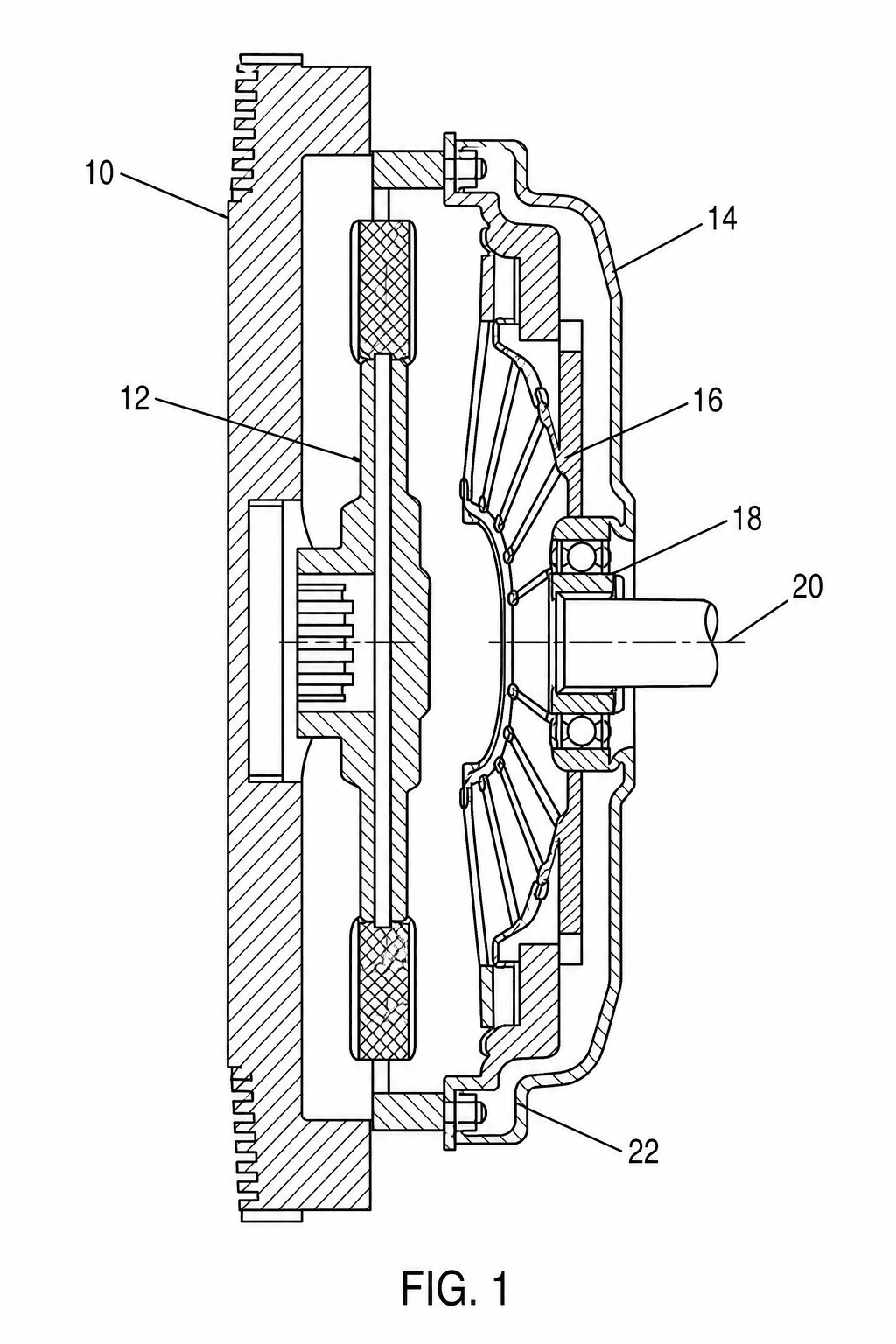

Mechanical patent drawing examples

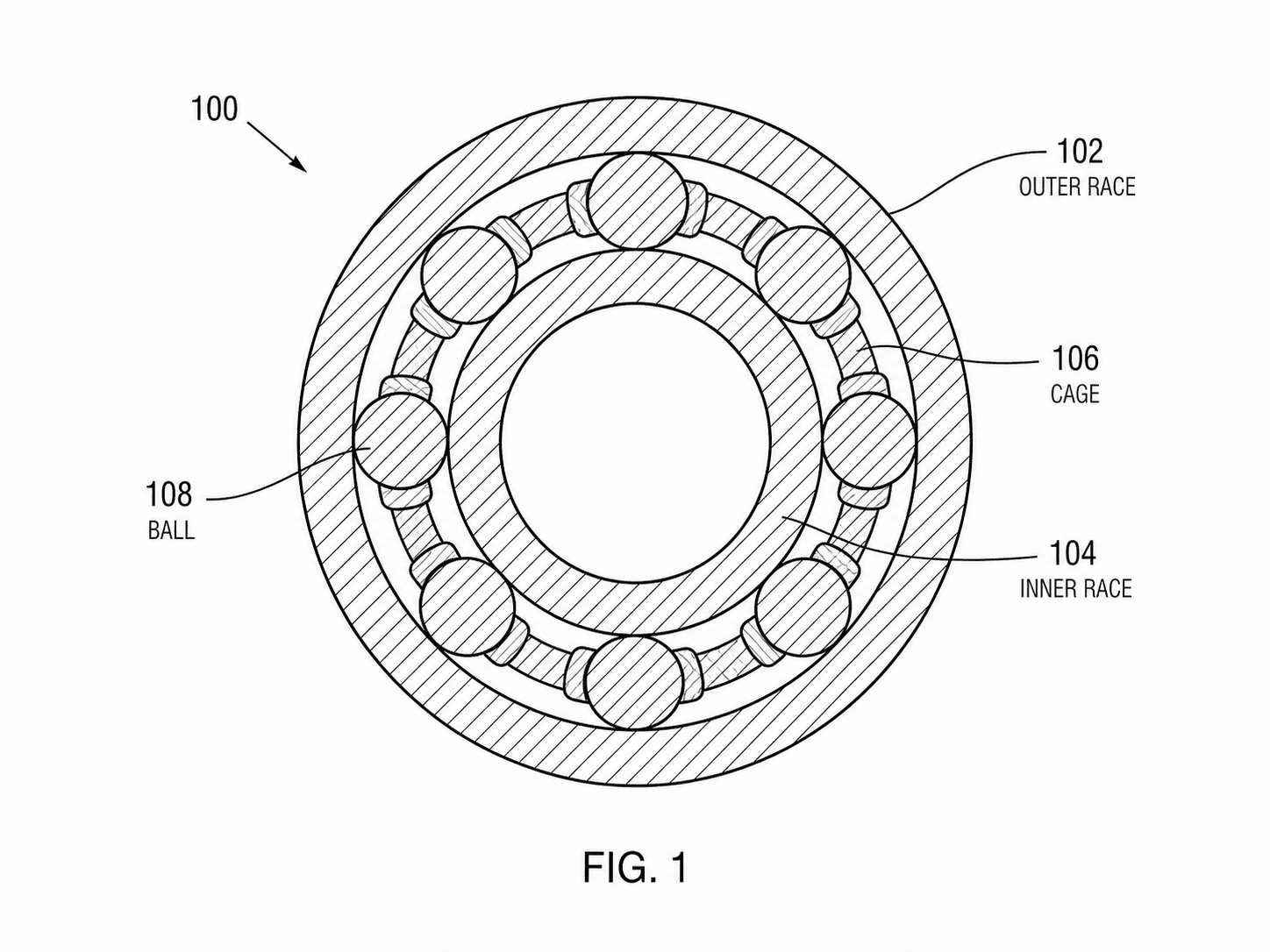

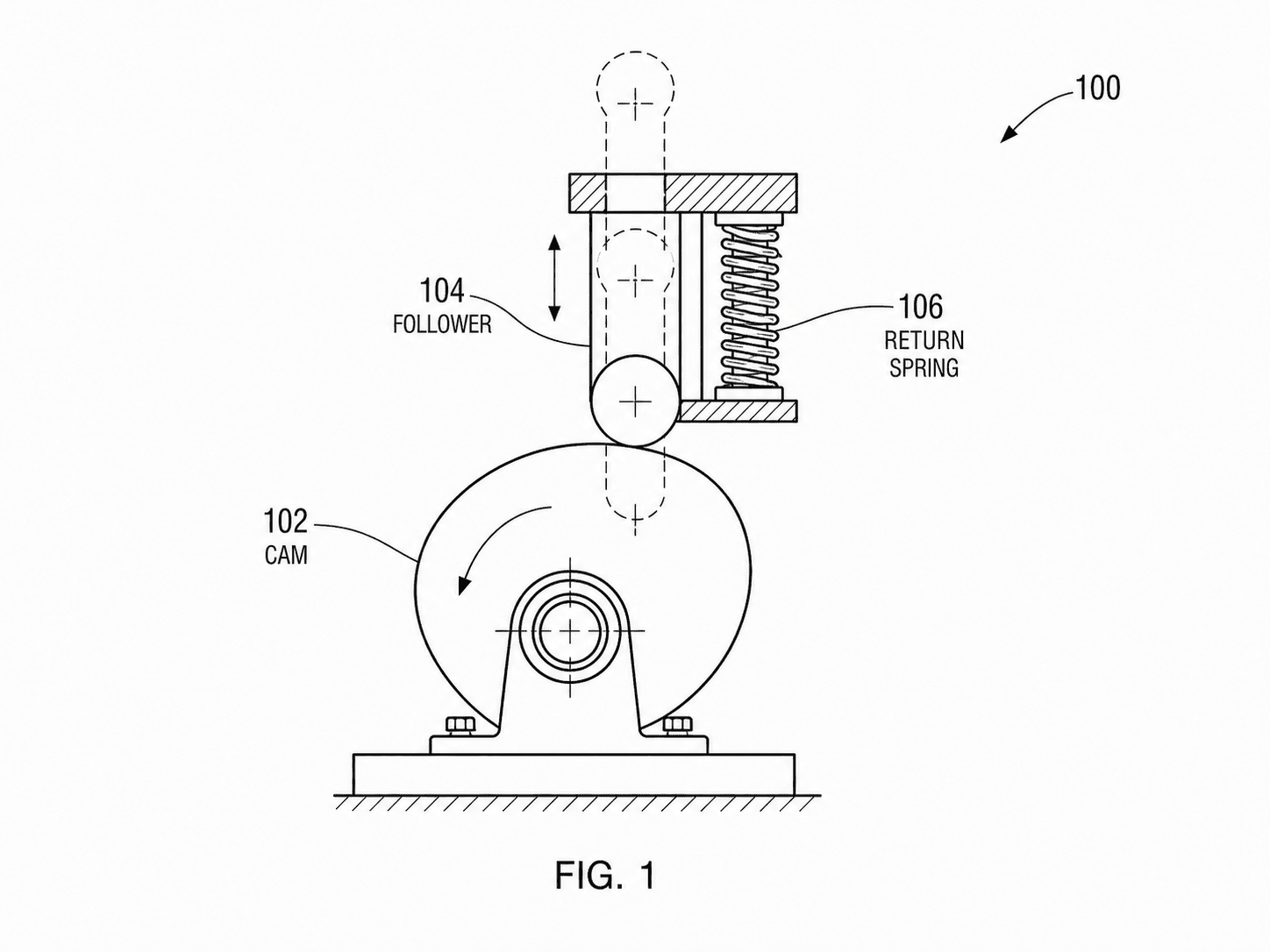

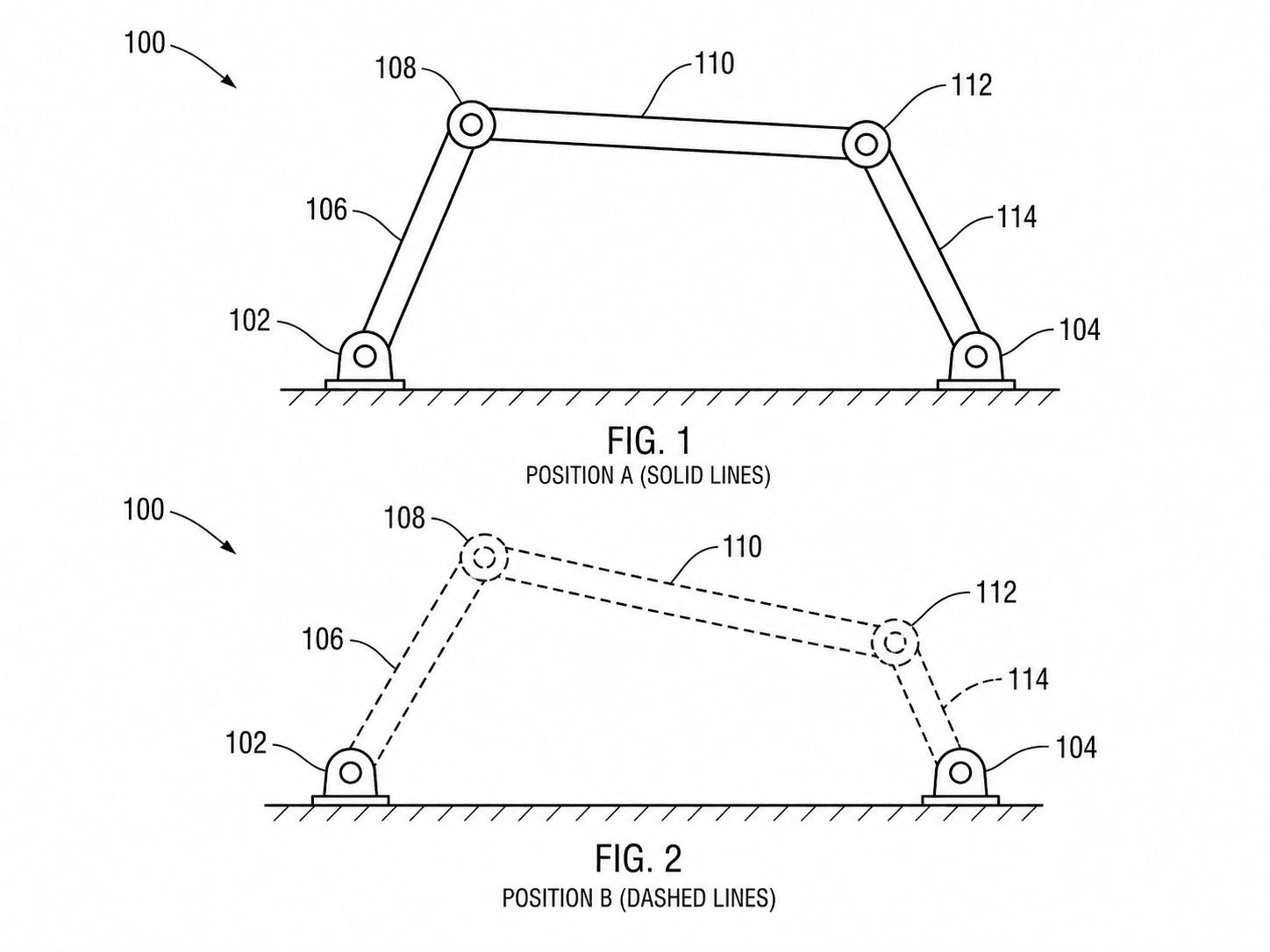

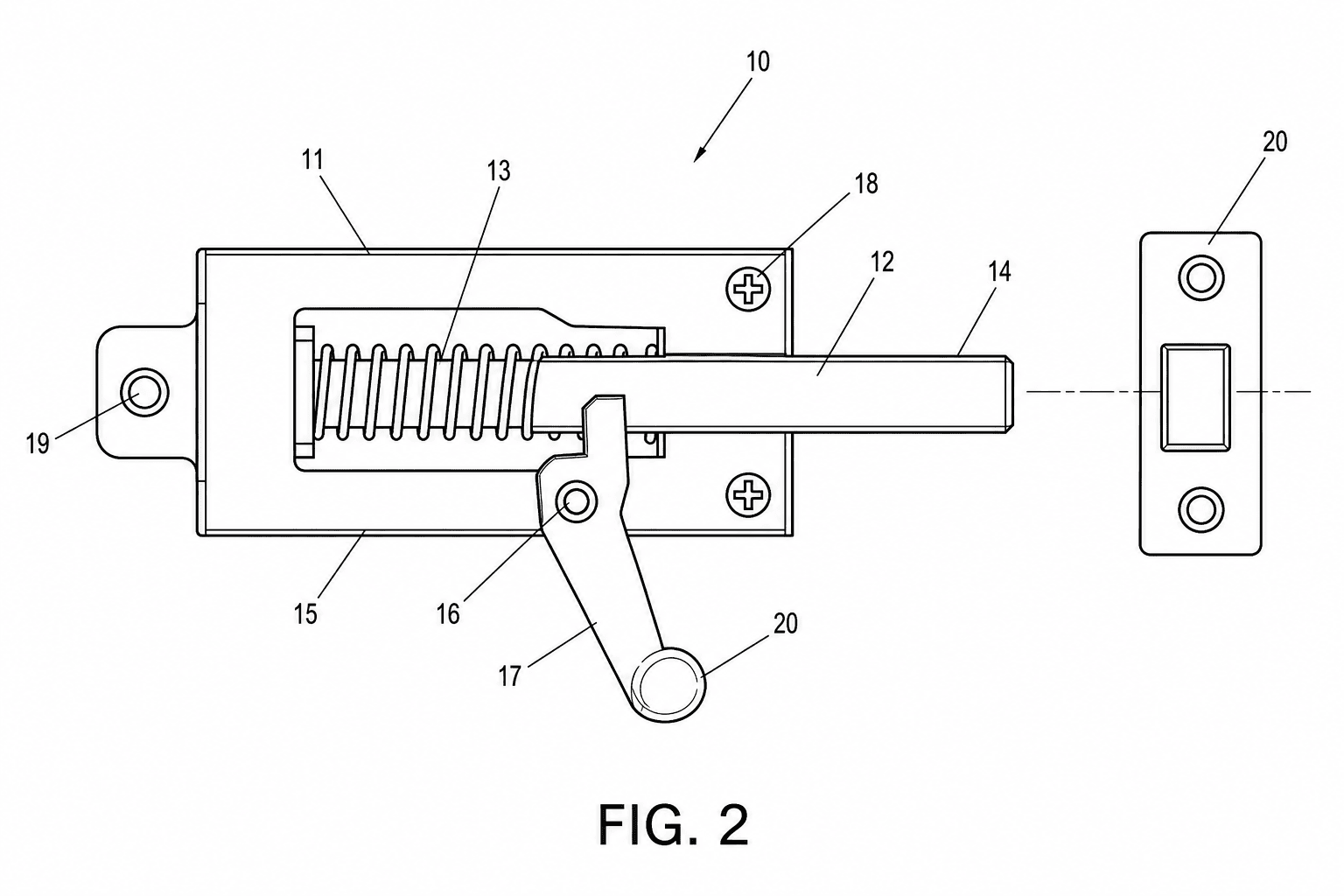

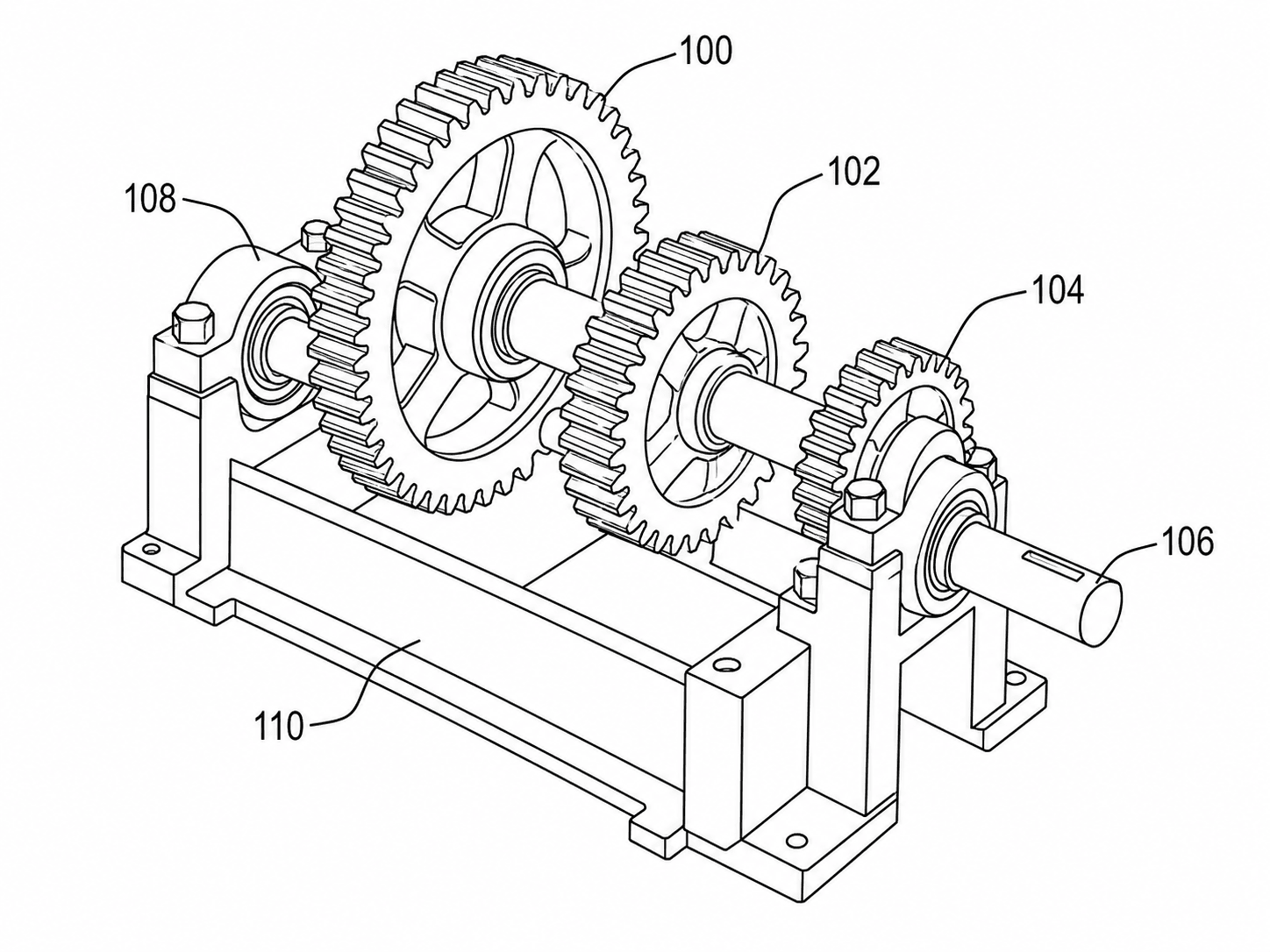

Fictional inventions in filing style. Open one to pre-fill the generator and adapt it.

A practical generation flow

Mechanical Drawing Generator for Patents is organized around source preparation, figure generation, revision, and final review.

Prepare the source

Use a mechanical drawing, technical drawing, product photo, CAD render, or inventor sketch with enough structure for PatentFig AI to infer the drawing relationships.

Generate the figure

Create filing-ready black-and-white line art on a pure white background, with mechanical structure, views, and reference numerals placed outside the part and connected by squiggly lead lines, per USPTO §1.84 / CNIPA with patent-style composition, line work, and reference structure.

Check and export

Use review and export tools once the layout, labels, and file format are stable.

Why this workflow needs a patent-specific tool

Generic image tools do not consistently handle mechanical drawings, technical drawings, device structures, housings, cross-sections, and hardware assemblies with the structure patent drawings need.

Patent-first structure

The workflow emphasizes readable parts, relationships, and reference numerals for mechanical drawings, technical drawings, device structures, housings, cross-sections, and hardware assemblies.

Iteration without restarting

Adjust the figure prompt, regenerate focused views, and keep the surrounding workflow stable.

Review before export

Check visual clarity, margins, line work, labels, and file readiness before downstream filing work.

Common mistakes in mechanical patent figures

Importing CAD output with title blocks, dimensions, and tolerances still embedded.

Drawing every fastener instead of grouping a fastener stack into one reference numeral when claim-irrelevant.

Picking a single perspective view instead of a perspective plus at least one orthographic view.

Using cross-section hatching dense enough to obscure the underlying structure.

Mechanical Drawing Generator for Patents

Mechanical Drawing Generator for Patents FAQ

Open Mechanical Drawing Generator for Patents

Start in PatentFig AI, generate filing-ready black-and-white line art on a pure white background, with mechanical structure, views, and reference numerals placed outside the part and connected by squiggly lead lines, per USPTO §1.84 / CNIPA, then review and export the figure set.
